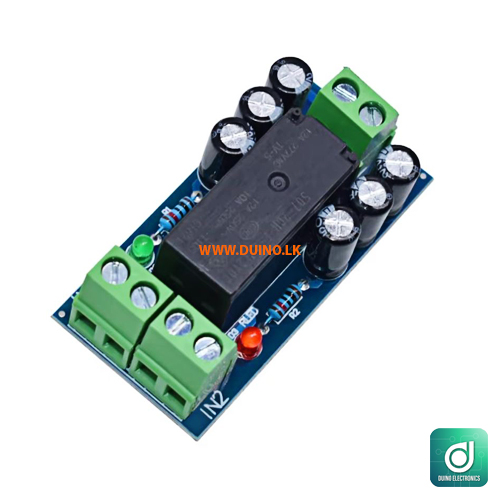

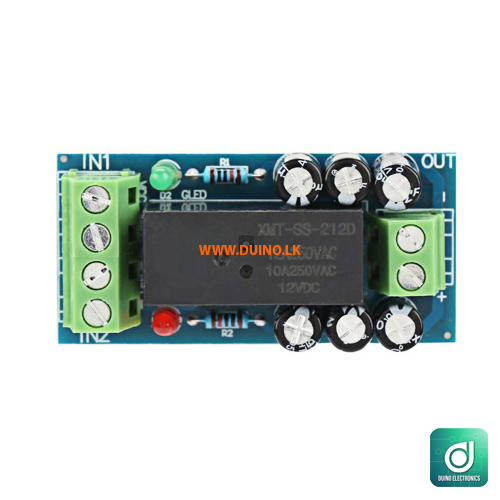

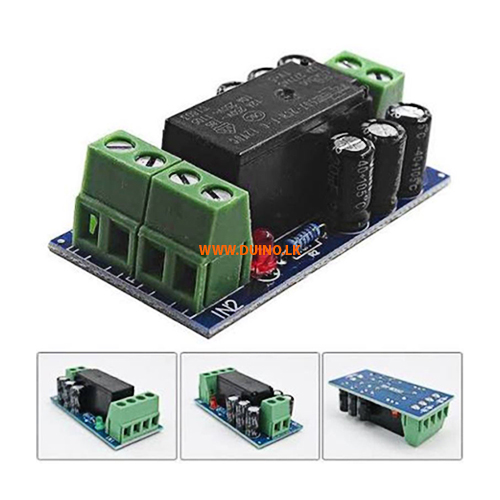

XH-M350 Backup Battery Switching Module Automatic Switching 12V 150W 12A

XH-M350 Backup Battery Switching Modul Automatic Switching 12V 150W 12A

XH-M350 Backup Battery Switching Modul Automatic Switching 12V 150W 12A
XH-M350 Automatic Backup Battery Switching Module 12V 150W 12A

The XH-M350 Automatic Backup Battery Switching Module is designed to automatically switch a load between a primary DC power supply and a backup battery. It helps maintain continuous power to connected 12V equipment during a mains or primary power supply failure.

With support for loads up to 12A / 150W, this module is suitable for various backup power, emergency power, security, automation, and DIY applications.

Key Features
Automatic Power Switching – Automatically switches to the backup battery when the primary power source is interrupted.
12V DC System – Designed for 12V power applications.
Up to 12A Load Capacity – Supports loads up to approximately 12A, subject to proper installation and operating conditions.
150W Maximum Power – Suitable for applications requiring up to approximately 150W at 12V.
Fast Automatic Switching – Helps maintain power to the connected load with minimal interruption.
Backup Battery Support – Can be used with a suitable 12V rechargeable battery as a backup power source.
Compact Module Design – Easy to integrate into DIY electronics, automation, and backup-power projects.
Simple Wiring – Provides dedicated connections for the primary supply, backup battery, and output load.

Applications
CCTV and security systems
LED lighting backup
12V routers and networking equipment
Alarm and access-control systems
Arduino and electronics projects
Emergency lighting
12V automation systems
DIY UPS and backup power systems

Specifications
Model: XH-M350
Module Type: Automatic Backup Battery Switching Module
Input Voltage: 12V DC
Output Voltage: 12V DC
Maximum Current: Up to 12A
Maximum Power: Up to 150W
Function: Automatic switching between primary power and backup battery
Application: 12V backup power systems

Note: The connected power supply, battery, wiring, connectors, and load should all be appropriately rated for the required current. This module is intended for 12V DC applications and is not a mains AC switching device.
