RFID Module Radio Frequency identification M5 MFRC-522

Introduction:

The MFRC522 is a highly integrated reader/writer IC for contactless communication at 13.56 MHz. It adopts advanced modulation and demodulation theory and has integrated all types of passive contactless communication mode and protocols at 13.56 MHz. MFRC522 supports faster contactless communication such as MIFARE. The bidirectional data transfer rate is as high as 424kbit/s.

Specification

Working current: 13 – 26mA/ DC 3.3V

Idle current: 10-13mA/ DC 3.3V

Sleep current: <80uA

Peak current: <30mA

Working frequency: 13.56MHz

Supported Card type: Mifare1 S50 Mifare1, support S70, Mifare UltraLight, Mifare Pro, Mifare Desfire

operating temperature: -20 – 80 degrees Celsius

storage temperature: -40 – 85 degrees Celsius

Relative humidity: 5% – 95%

Data transmission speed: 10M bit/s at Maximum.

Shipping list:

1x RC522 module

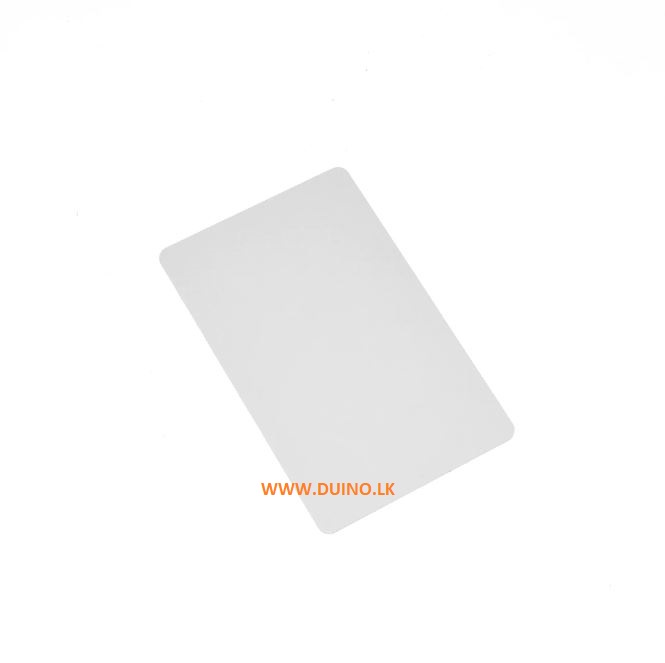

1x IC card

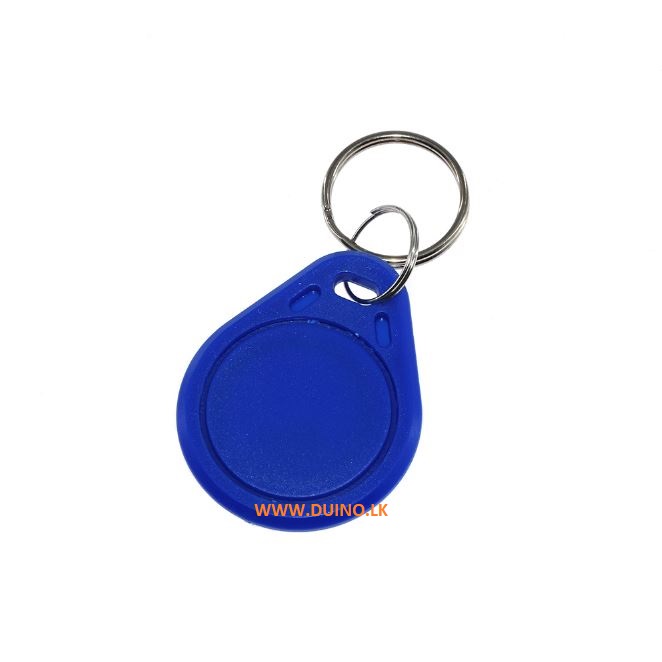

1x Key fob
