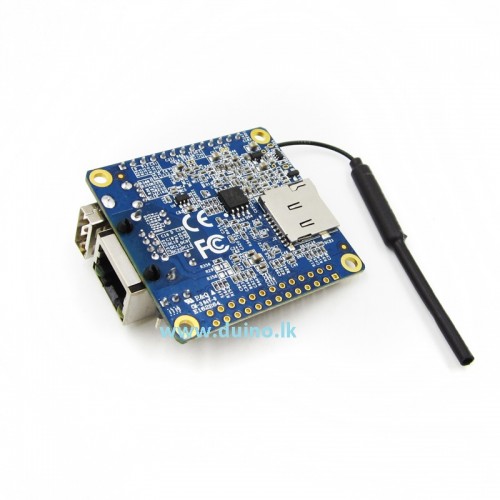

Orange Pi Zero H2+ Quad Core Open-Source 512MB Development Board

What’s Orange Pi Zero?

It’s an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian. It uses the AllWinner H2 SoC, and has 512MB DDR3 SDRAM.

Who’s it for?

Orange Pi Zero is for anyone who wants to start creating with technology – not just consuming it. It’s a simple, fun, useful tool that you can use to start taking control of the world around you.

What can I do with Orange Pi Zero?

You can use it to build…

A computer

A wireless server

Games

Music and sounds

HD video

A speaker

Android

Scratch

Pretty much anything else, because Orange Pi is open source

Hardware specification

CPU

H2 Quad-core Cortex-A7 H.265/HEVC 1080P

GPU

·Mali400MP2 GPU @600MHz

·Supports OpenGL ES 2.0

Memory (SDRAM) 512MB DDR3

Onboard Storage 100M / 10M Ethernet RJ45 (POE is default off)

Wifi Antenne XR819, IEEE 802.11 b/g/n

Audio Input

MIC

Video Outputs

Support external board via 13pins

Power Source USB OTG can supply power

USB 2.0 Ports One USB 2.0 HOST, one USB 2.0 OTG

Buttons Power Button

Low-level peripherals 26 Pins Header, compatible with Raspberry Pi B+

13 Pins Header, with 2 x USB, IR pin, AUDIO (MIC, AV)

GPIO(1×3) pin UART,ground.

LED Power led & Status led

Supported OS Android, Lubuntu, Debian, Rasberry Pi Image

Interface definition

Product size 46mm × 48mm

Weight 26g

Power supply 5V 3A

Operating Temperature -10 ~ 65℃

Package included:

1 x Orange Pi Zero
