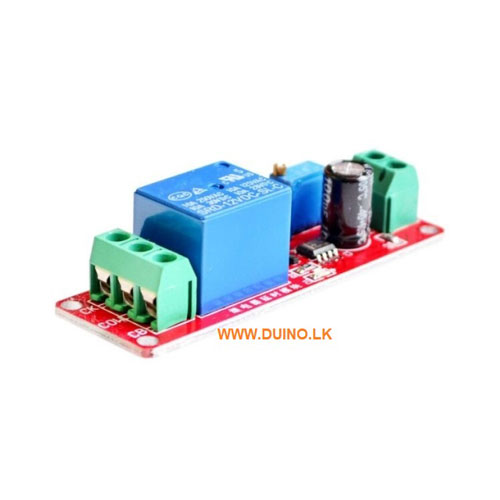

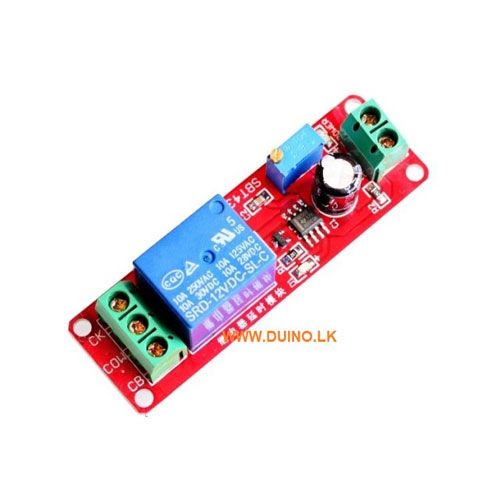

NE555 DC 12V Timer Switch Adjustable Time Delay Relay Module 0~10S

DC 5V 12V Time Delay Relay NE555 Timer Relay Shield Timing Relay Timer Control Switch Car Relays Pulse Generation Duty Cycle

Application:

Vehicle equipment-delay to prevent car ignition, prevention of

high sudden current to burn components and devices.

This is a 5V / 12V Conduction delay relay module

This is a brand new and high-quality delay turn-on module.

the use of high-performance timing CPU design.

the power indicator LED and switch trigger timing indication

LEDs;

The output can be connected to AC 250V 10A DC 30V 10A

load;

There is the chronopotentiometry regulation time, adjustable

from 0 to 10 seconds by default, or by changing the

capacitance adjustment time longer

Specification:

1.Module based on: NE555 chip.

2.Delay module: delay connect module

3.Input voltage: DC 5V / 12V

4.Control voltage: AC 0~250V / max. 10A, DC 0~30V / max. 10A the operating voltage: 12 volts DC; (otherwise 5V optional)

5.Max. load: 2200W

Main Chip (NE555) Characteristics:

1.Timing from microseconds to long hours

2.Simple circuit design

3.Precision Pulse Generation / Timing,

4.Adjustable Duty Cycle
