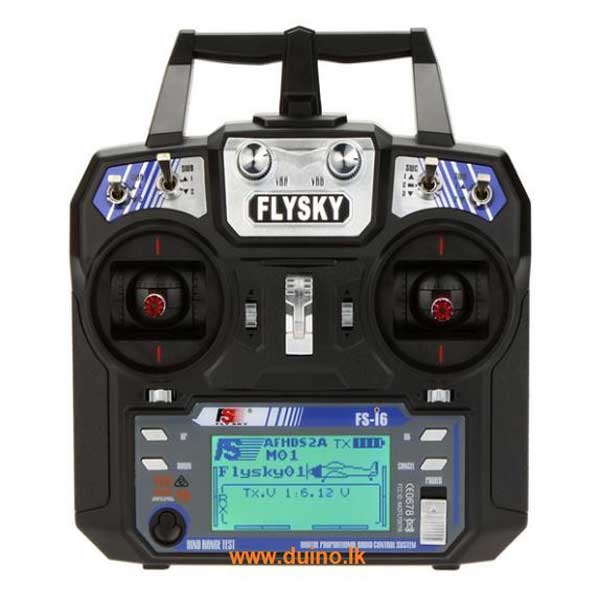

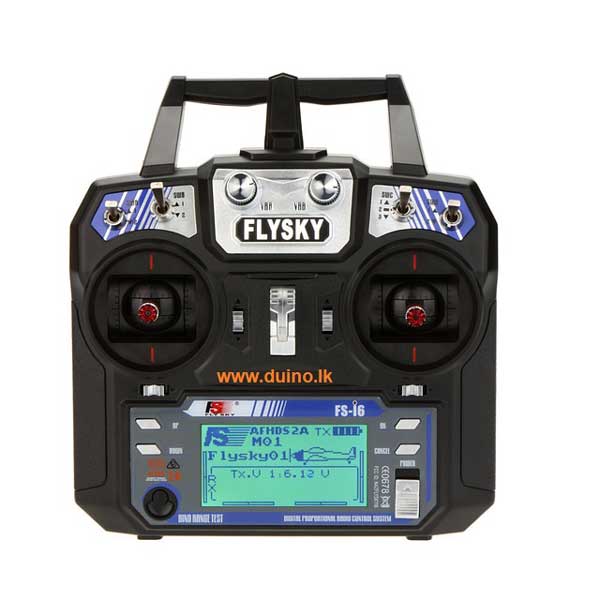

FlySky FS-i6 2.4G 6CH RC Transmitter With FS-iA6 / IA6B Receiver

Flysky FS-i6 FS I6 2.4G 6ch RC Transmitter Controller with FS-iA6 Receiver For RC Helicopter Plane Quad-copter Glider drone

Brand Name: FlySky

Item Name: FS-i6 transmitter

Channel: 6

Model Type: fixed wing/helicopter/glider

Channel resolution: 1024 steps

Low voltage warning: less than 4.2v

ANT length: 26 x 2mm( dual antenna)

Weight: 392g

Battery: 6v 1.5AA x 4(not included)

Size: 174 x 89 x 190 mm

Color: black

Certificate: CE ,FCC

RF specification:

RF Range: 2.405 – 2.475GHz

Bandwidth: 500khz

RF Power: less than 20dBm

RF mode: AFHDS 2A

Modulation type: GFSK

RX Sensibility: -105dBm

Receiver specification:

Channel: 6

Model type: fixed wing/helicopter/glider

RF receiver sensitivity: -105dBm

Modulation: GFSK

System type: AFHDS2A/AFHDS

Channel resolution: 1024 steps

Bind port: yes

Power port: yes( VCC)

Power: 4V -6.5V DC

Weight: 6.4g

Antenna lenght: 26mm

Size: 40.4 x 21.1 x 7.35 mm

Certificate: CE ,FCC

Features:

Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142

independent channels,each radio system uses 16 different channels and 160 different types

of hopping algorithm.Silm design on transmitter for easy handling!

This radio system uses a high gain and high quality multi directional antenna,it covers the

whole frequency band. Associated with a high sensitivity receiver,this radio system

guarantees a jamming free long range radio transmission

Each transmitter has a unique ID,when binding with a receiver,the receiver saves that

unique ID and can accepts only data from the unique transmitter.this avoids picking another

transmitter signal and dramatically increase interference immunity and safety.

This radio system uses low power electronic components and sensitive receiver chip.The RF

modulation uses intermittent signal thus reducing even more power consumption

AFHDS2A system has the automatic identification function,which can switch automatically

current mode between single-way communication mode and two-way communication mode according to the customer needs.

AFHDS2A has built-in multiple channel coding and error-correction,which improve the

stability of the communication,reduce the error ratio and extend the reliable transmission

distance.

Package Included:

1 x FS-i6 transmitter

1 x FS-iA6B Receiver or 1 x FS-iA6 Receiver
