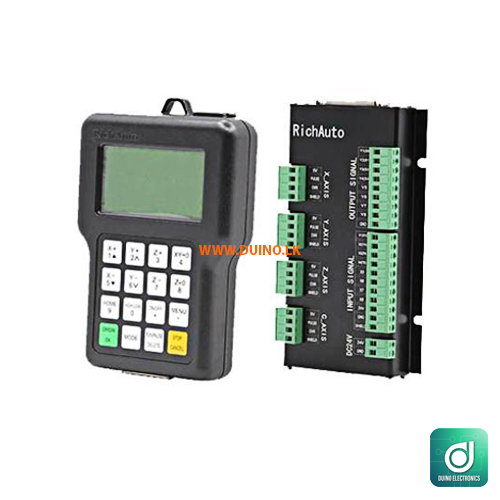

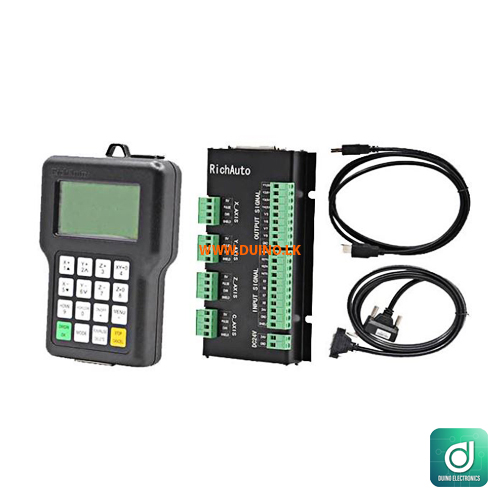

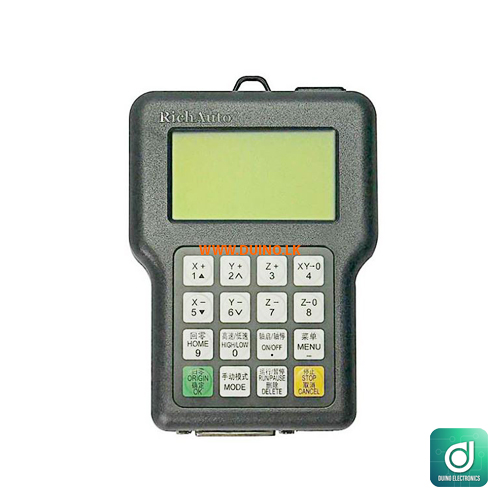

RichAuto A11 A11E 3 Axis DSP CNC Controller – 6m Wire

RichAuto A11 A11E 3 Axis DSP CNC Controller – 6m Wire

Key Features
*Standalone Operation: No PC required! Simply load your design files via a USB flash drive (U-disk) and operate the machine directly using the handheld device.
*Intelligent Memory & Recovery: Features advanced power-failure protection and a breakpoint resume function. It can save up to 8 different breakpoints, ensuring you never lose your machining progress during unexpected power cuts.
*High Compatibility: Flawlessly reads standard G-code and PLT files. Compatible with major CAM software such as ArtCAM, Type3, MasterCAM, and more.
*Advanced Motion Control: Precise 3-axis (X, Y, Z) interpolation motion control for smooth, accurate, and high-speed CNC routing and engraving.
*On-the-Fly Adjustments: Easily adjust spindle operating frequency and feed rate while the machine is actively running.
*Multi-Coordinate System: Supports up to 9 distinct working coordinate systems, allowing for complex multi-part machining.
*Large Built-in Storage: Comes with 512MB of internal memory for fast and reliable offline file processing.

Technical Specifications
Processor (CPU): DSP (Digital Signal Processor)
Controlled Axes: 3-Axis (X, Y, Z)
Display: 128 x 64 Monochrome LCD
Internal Memory: 512 MB
Communication Interface: USB / U-Disk
Control Signal: Differential Signal
Input Power Supply: 24V DC
Supported Drive Systems: Stepper Motor / Servo Motor
Minimum Input Unit: 0.001 mm
Maximum Pulse Frequency: 1 MHz
Language Support: English / Chinese

Applications
Perfectly suited for:
CNC Woodworking Routers
Stone Carving & Engraving Machines
Advertising & Acrylic CNC Machines
Precision CNC Mold Making and Milling
