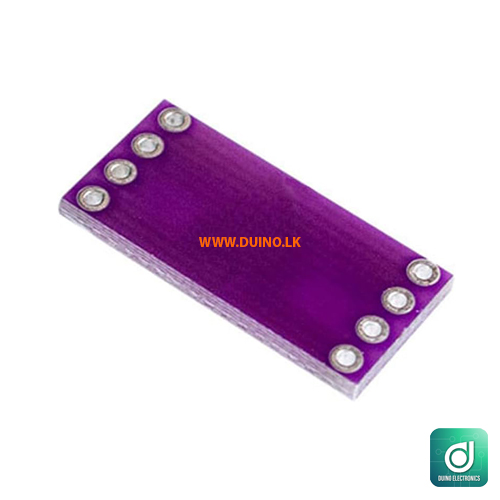

ADUM1201ARZ Magnetic Isolator Module – Dual Channel Digital Isolator

The ADUM1201ARZ Magnetic Isolator Module is a compact digital signal isolation module based on the ADuM1201 magnetic isolation technology from Analog Devices. It provides reliable electrical isolation between two circuits while allowing digital signals to pass across the isolation barrier.

This module is suitable for isolating microcontrollers, Arduino, ESP32, Raspberry Pi, UART, SPI, RS-232/RS-485 interfaces, industrial control systems, and other digital communication circuits where protection from voltage differences, ground loops, and electrical noise is required.

Features
Model : ADUM1201ARZ
Type : Magnetic Digital Isolator Module
Isolation Technology : Magnetic / iCoupler®
Channels : Dual-channel digital isolation
Low power consumption
High-speed digital signal transmission
Helps eliminate ground loops
Provides protection between connected circuits
Suitable for MCU and digital communication interfaces
Compact module design for easy integration
Suitable for 3.3V and 5V digital systems when used within the module’s specified operating conditions

Applications
Arduino and ESP32 projects
Raspberry Pi projects
UART signal isolation
SPI communication isolation
Industrial control systems
Microcontroller interface isolation
Sensor signal isolation
RS-232 / RS-485 interface isolation
Motor controller protection
Power supply and control circuits
Ground-loop elimination
Industrial automation and instrumentation

Important Note

The ADUM1201 is a digital isolator, not a conventional optocoupler. It uses magnetic coupling technology to transfer digital signals across an isolation barrier, providing galvanic isolation between the two sides.

Ideal for projects where two digital circuits need to communicate while remaining electrically isolated from each other.
