Features Can play a variety of music formats,
support for OGG encoding real-time recording SPI interface,
the control signal lines are led out A headphone and stereo output
A microphone for recording A line_in input interface
Power indicator 3.3V and 2.8V of LDO chip AMS-1117 on board,
provides up to 800mA current
A single power supply: +5 VDC 12.288 Mhz crystal TF cart slot.
Features
Can play a variety of music formats, support for OGG encoding real-time recording
SPI interface, the control signal lines are led out
A headphone and stereo output
A microphone for recording
A line_in input interface
Power indicator
3.3V and 2.8V of LDO chip AMS-1117 on board, provides up to 800mA current
A single power supply: +5 VDC
12.288 Mhz crystal
TF card slot
Decodes formats
Ogg Vorbis
MP3 = MPEG 1 & 2 audio layer III (CBR+VBR+ABR)
MP1 & MP2 = MPEG 1 & 2 audio layers I & II optional
MPEG4 / 2 AAC-LC(+PNS), HE-AAC v2 (Level 3) (SBR + PS)
WMA4.0/4.1/7/8/9 all profiles (5-384 kbps)
FLAC lossless audio with software plugin (upto 24 bits, 48 kHz)
WAV (PCM + IMA ADPCM)
General MIDI 1 / SP-MIDI format 0
Package included:

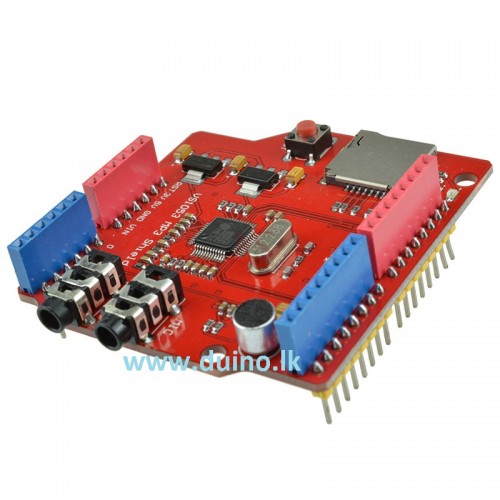

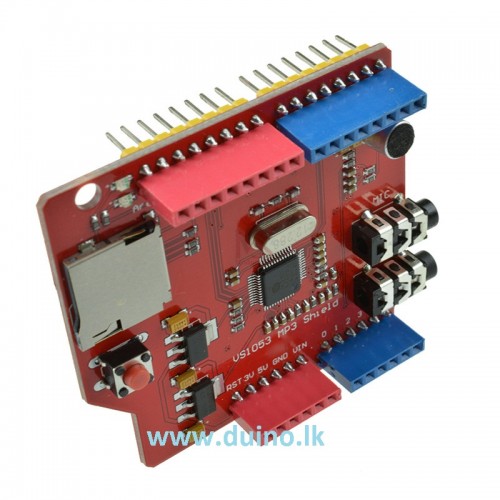

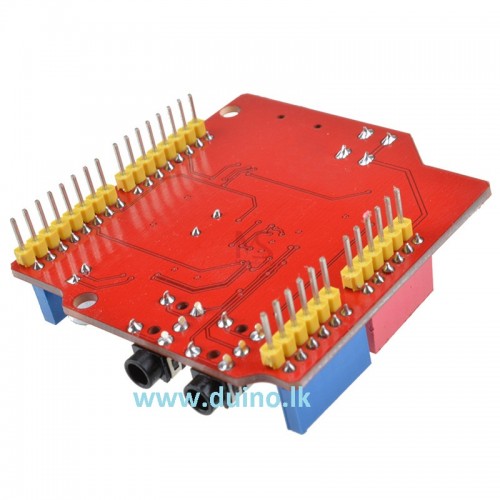

1 x MP3 Music VS1053B shield board with
