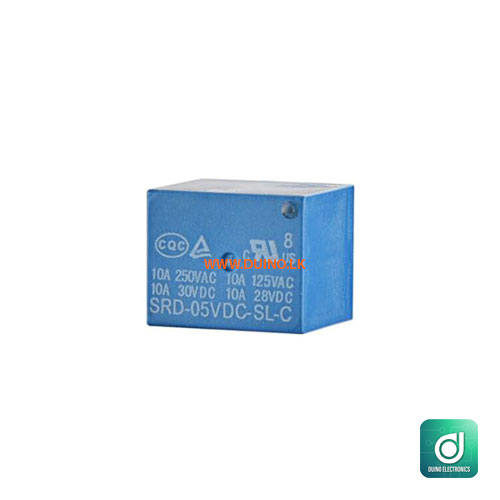

5V DC Power Relay SRD-05VDC-SL-C PCB Type *Normal Quality
SKU: ACS4011-A
Availability:
In stock
5V DC Power Relay SRD-05VDC-SL-C PCB Type *Normal Quality
රු85.00 or 3 X රු28.33 with
In stock
5V DC Power Relay SRD-05VDC-SL-C PCB Type *Normal Quality
Contact form: 1a, 1b, 1c
Contact resistance: <=100m (ohm)
Electrical life: 100,000
Mechanical life: 10,000,000
Coil rated voltage: 5V/12V/24V DC
Coil power: 0.36W, 0.45W
Coil pick-up voltage: <=75% Coil drop-out voltage: >=10%
Ambient temperature: -25 degrees Celsius to +70 degrees Celsius
Coil and contacts: 1500VAC/min
Contact and contacts: 1000VAC/min
Insulation resistance: >=100M (ohm)
Outline dimensions (mm): 19.0x 15.5 x 15.0
Package：
Mini Power Relay 5Pins x 1
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
