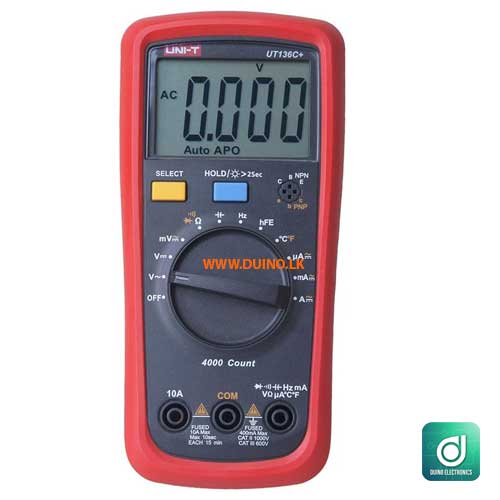

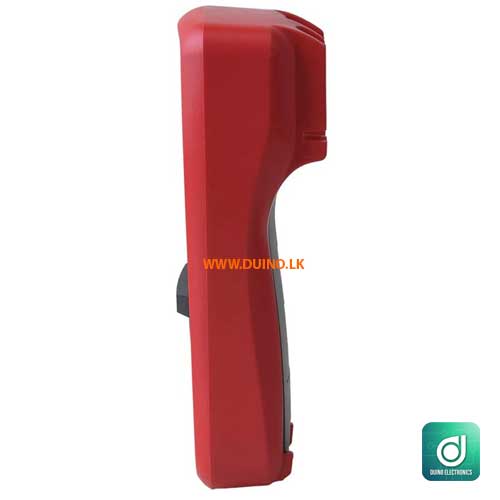

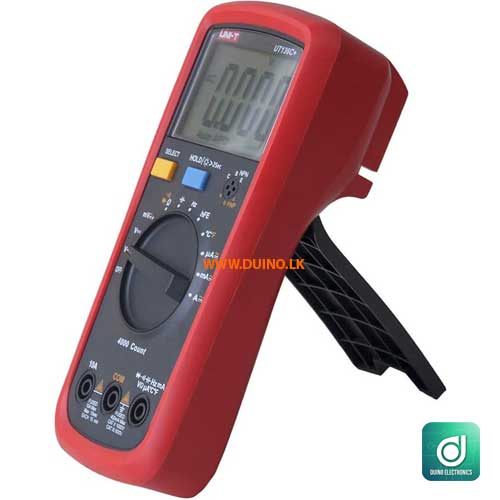

UNI-T UT136C+ Auto Range Digital Multimeter

UNI-T UT136C+ Auto Range Digital Multimeter

UT136+ series is designed to work safely in CAT II1000V/CAT III 600V environment.
This series is suitable for civil/commercial use such as HVAC technicians and electricians.

Specifications:

• Specifications Range Best Accuracy
• DC voltage (V): 400mV/4V/40V/400V/1000V ±(0.5%＋2)
• AC voltage (V): 400mV/4V/40V/400V/1000V ±(0.7%＋3)
• DC current (A): 400uA/4000uA/40mA/400mA/4A/10A ±(1.0%+3)
• AC current (A): 400uA/4000uA/40mA/400mA/4A/10A ±(1.5%+5)
• Resistance (Ω): 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(0.8%+2)
• Capacitance (F): 4nF/40nF/400nF/4μF/40μF/400μF/4mF/40mF ±10%
• Temperature (℃): -40～1000℃±4℃
• Temperature (℉): -40 ~ 1832℉±5℉
• Frequency: 400Hz~40MHz±(0.1%+4)
• Max display:3999
• Auto range:　√
• Diode/Transistor:　√
• Backlight:√
• Overload alarm:√
• Low battery indication:√
• Auto power off:　√
• LCD size:　60mm x 38mm
• Protective sleeve:3.0mm√
• Safety rating:CAT II 1000V
• Product size:175mm x 83mm x 50mm
• Package size: 197mm x 110mm x 65mm
• Package Weight:456gram

Features:

• Measures up to 1000V and 10A AC/DC voltage and current
• Equipped with 3mm protective sleeve; 2 meters drop proof
• Large LCD dual display; up to 4 times/s refresh rate
• Full range protection: can endure up to 1kV over voltage shock;overload alarm Quick response rate
• Low power consumption and auto power saving function; long battery service life (>500hrs)

Brand UNI -T
Power source –  Battery Powered
Colour-  Red,Gray
Item dimensions –  L x W x H 17.5 x 8.3 x 5 centimetres
Min. Operating voltage  – 400 Millivolts
Measurement type –  Multimeter
UPC –  888827974809
Manufacturer  – UNI-T
