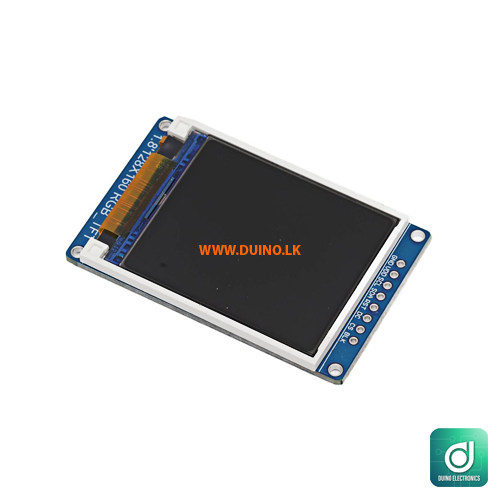

1. LCD size: 1.8″
2. Lattice size:
128 * 160 (1.8 inches)
(you can adjust the display direction, both horizontal screen and vertical screen)
3. LCD color: 65K full color
4. Hardware interface: SPI interface
5. Drive IC: ST7735
6. Working temperature: – 20 ° C to 70 ° C
8. Working power supply: 3.3v
9. Interface: 8Pin
10. Display area:
28 * 35 mm (1.8)

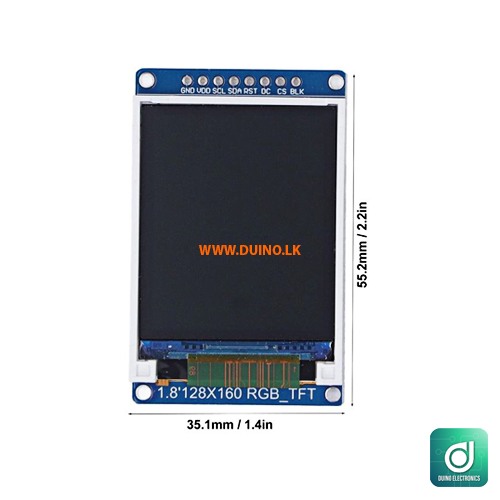

11. Size:
35 * 56 mm (1.8)

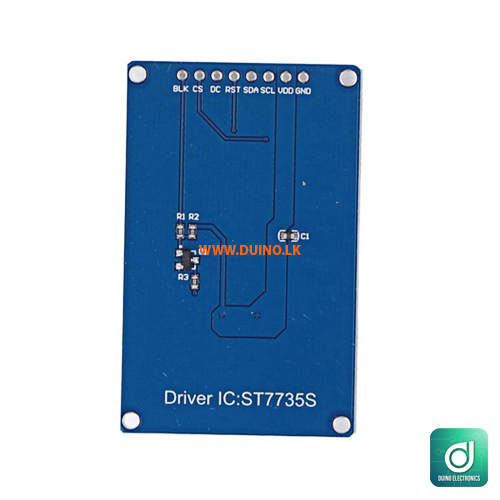

Interface definition:
1. GND: power supply
2.VCC: 3.3V-5.0V (DC)
3.SCL: SPI clock line
4.SDA: SPI data line
5.RES: restart the interface
6.DC: SPI data/command selection
7.CS: chip selection interface (1.3-inch none)
8.BLK: backlight control, default float, low level off
