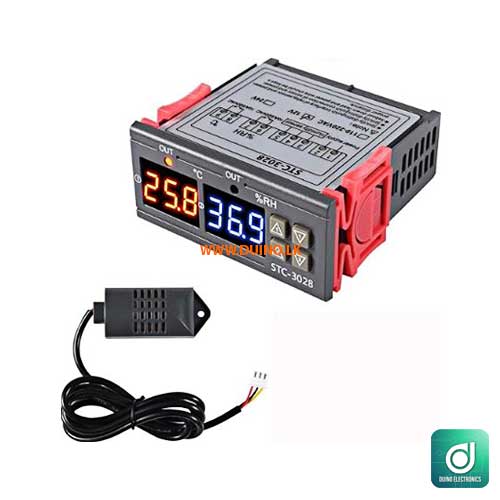

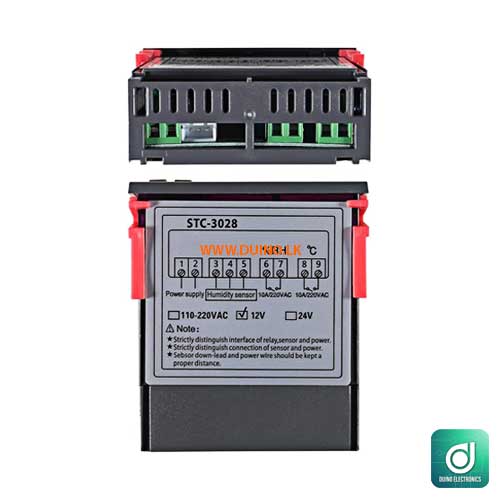

STC-3028 12VDC Temperature and Humidity Controller

STC-3028 12VDC Temperature and Humidity Controller

Input voltage: AC12V
Measuring temperature range: -50°～+110°
Measuring humidity range: 00%RH～+100%RH
Accuracy: ±1°, 0.1%RH
Relay output contact capacity: 10A/240VAC

Set startup temperature(humidity):
Press the “up” button once to display the starting temperature(humidity).
Long press the “up” button for about 3 seconds
The required temperature(humidity) can be set by the up and down keys

Set the stop temperature(humidity):
Press the “down”button once to display the stop temperature(humidity).
Long press the button for about 3 seconds and the stop temperature(humidity) number flashes.
The required temperature(humidity) can be set by the up and down keys

temperature (humidity) correction:
Press”up” and “down button at the same time.

Package included：
1 x STC-3028 temperature humidity controller
1 x Integrated sensor
