Cables / Clips / Connectors, Related Accessories

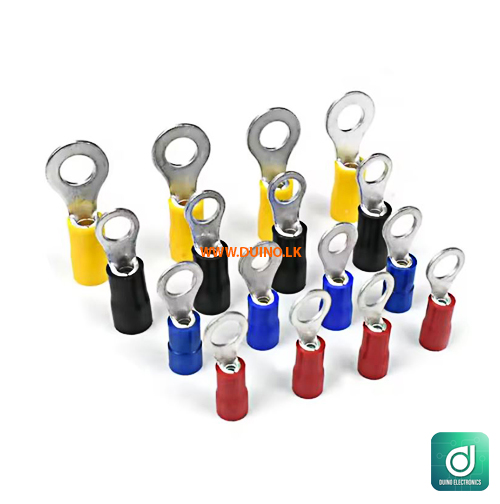

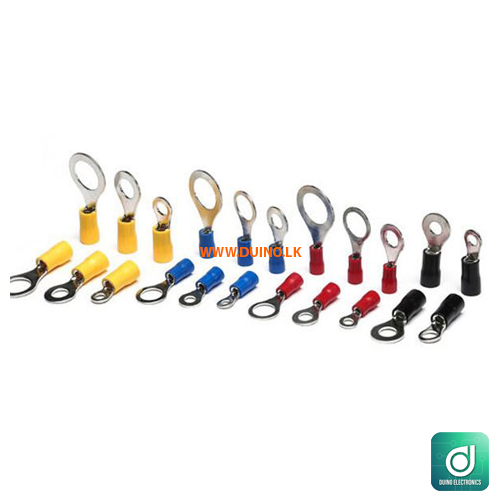

Ring terminals Type Cable Wire Lug Connector Insulated *10Pcs
SKU: ACS4600
Availability:
In stock
Ring terminals Type Cable Wire Lug Connector Insulated M4 M6 M8 22-16/16-14/12-11AWG
රු90.00 or 3 X රු30.00 with
Ring terminals Type Cable Wire Lug Connector Insulated M4 M6 M8 22-16/16-14/12-11AWG

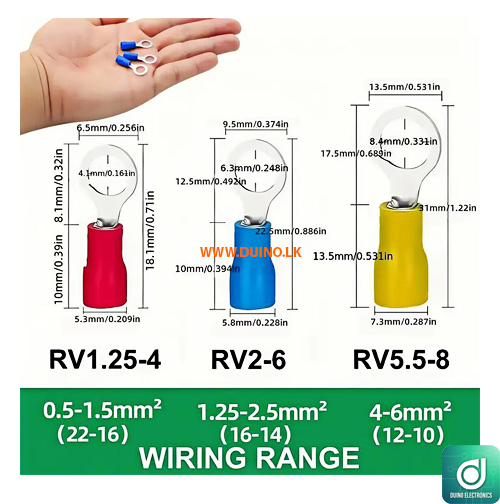

Model Stud/Hole Size Wire Size Range
A – RV1.25-3 M3 (3mm) 0.5–1.5mm²
B – RV1.25-4 M4 (4mm) 0.5–1.5mm²
C – RV1.25-5 M5 (5mm) 0.5–1.5mm²
D – RV1.25-6 M6 (6mm) 0.5–1.5mm²
E – RV1.25-8 M8 (8mm) 0.5–1.5mm²
F – RV2-4 M4 (4mm) 1.5–2.5mm²
G – RV2-5 M5 (5mm) 1.5–2.5mm²
H – RV2-6 M6 (6mm) 1.5–2.5mm²
I – RV2-8 M8 (8mm) 1.5–2.5mm²
J – RV5.5-6 M6 (6mm) 4–6mm²
K – RV5.5-8 M8 (8mm) 4–6mm²
L – RV5.5-10 M10 (10mm) 4–6mm²
| Ring Terminal Size | B – RV1.25-4 M4 (4mm) 0.5–1.5mm², C – RV1.25-5 M5 (5mm) 0.5–1.5mm² |
|---|---|
| Choose Color | Black, Blue, Yellow |
