Basic Parameters
Voltage: 12 V/24 V
Motor: Stepper Motor
Flow rate: 3 rotors: 44~420 ml/min; 6 rotors: 38~190ml/min
Power: ≤36 W
Temperature: 0~40℃
Humidity: < 80%
Self-Priming: > 2 m
Weight: 455 g
Noise: <65 dB
Adjustable Number of Rotors
3 rotors
Tube Description
BPT: ≥1000 H
Very good resistance to general chemicals, as well as excellent resistance to acids, alkalis and oxides. The product is transparent and resistant to ultraviolet radiation, so it helps protect sensitive liquids.
Working temperature: -51℃~132℃
Working temperature: -60℃~200℃
Step angle: 1.8°
Two phases: four wires
Current: 1.2 A
Wiring length: 400 mm
Basic Parameters

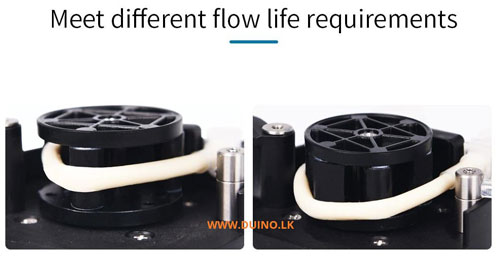

Adjustable Number of Rotors
Left: 3 rotors; Right: 6 rotors
Silicone: ≥200 H
Low adsorption, good temperature resistance, not easy to aging, low precipitation, etc., Chemical resistance; Corrosion performance decreases with increasing temperature. Suitable for transmission of various low corrosion
(10%) Liquid.
Working temperature: -60℃~200℃
Step angle: 1.8°
Two phases: four wires
Current: 1.2 A
Wiring length: 400 mm
