NEJE N30610 10W Laser Module Kit NEJE00383 Blue Light With TTL / PWM Modulation for DIY Laser Engraver Laser Cutting

Model：NEJE Module 2.5W (INPUT about 15W)
Heatsink Material： Aircraft Aluminum + Brass Shell
Luminous Color： Blue
Laser diode： Osram 2.2W 5.6mm (The maximum power 5.6mm laser diode)
LD Current： 1.6A
Section Size：30mm x 30mm
Cooling Mode：20mm copper core + Heat Sink Groove+ Thermal silicone grease + 10000 rpm cooling fan
Dimension：60 * 30 * 30mm
Adapter Output Voltage： DC 12V 2A
Can Engrave： MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave： Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

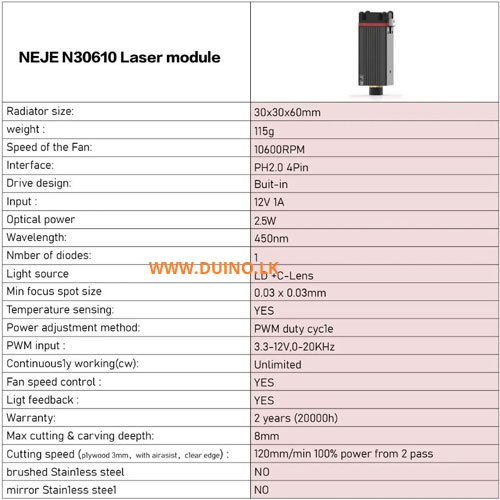

Technical Parameters：

Input Power： 15W

Wavelength：445-450nm
Beam Shape： Dot (Focusable)
Input Voltage： DC 12V
TTL&PWM Modulation： YES, Compatible with Both TTL & PWM Modulation
Input Voltage： DC12V
PWM/TTL Input： DC3.3V-12V

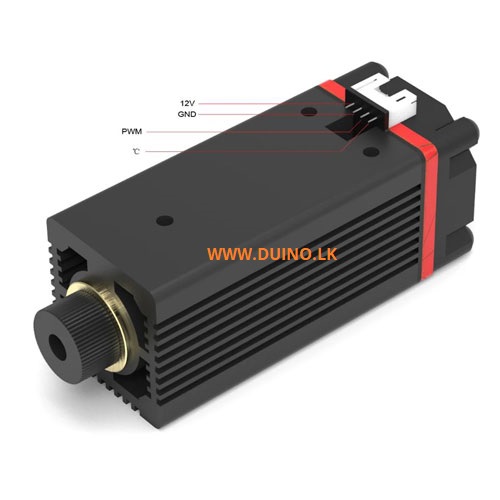

Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
Drive Mode： External ACC
Safe temperature range： <70 ℃
Module weight： 115g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time： 20,000 hours

Features（Unique technology）:

Easy to Use 12V input, 3.3-12V PWM/TTL control， Can be used for laser cutting machine, laser engraving machine, CNC, DIY laser, Arduino.
Original Laser Diodes Sharp 5.6mm Original laser diodes, High-quality, Ensure service life！

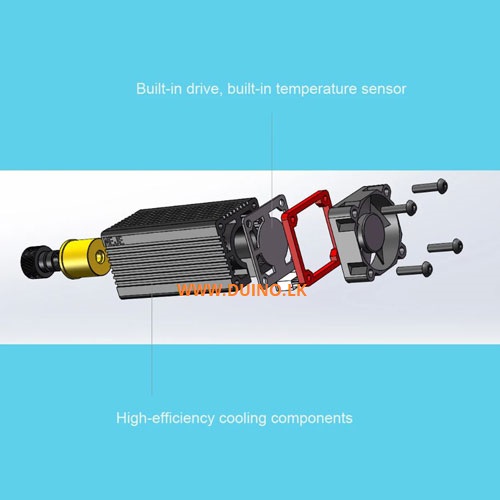

20000hours service life Built-in driver board, 20mm threaded copper core with thermal grease compound, Temperature sensor， NEJE factory 48-hour 100% power aging test, Ensuring long time working！

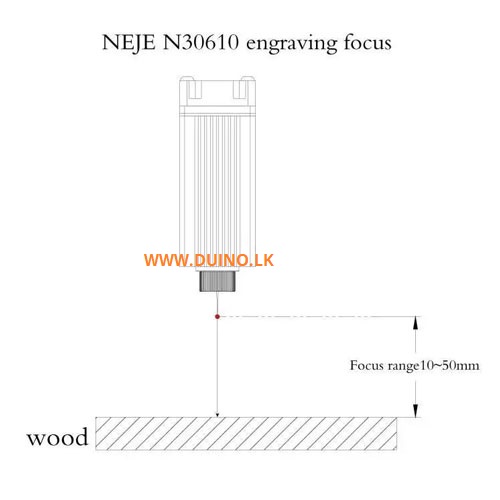

Clear focus New lens, Clear focus, Not stray light, Adjustable focal length.
Application Material  Can carving MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc.(Not suitable for iron or other metal)
Note(Please pay attention):

1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
2. Do not engrave mirror objects， Pay attention to fire，Pay attention to pets when working！
3. Smoke will be generated when burned, please pay attention to smoke exhaust indoors.
4. The warranty period of laser module is one year. If you have any quality problem(Except individual situation like using the laser module more than 30 minutes per time and casue the damage ), please feel free to ask our customer service for a help.
5. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.
6. If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved according to your video and problem description. Thank you in advance.
7. This laser module is compatible with our NEJE machine .
