NEJE F30130 30W Diode Laser Module Kit NEJE00379 with Air Assist SS Support Engraving

Specification
Module: NEJE F30130
Focus: 0.06×0.8mm
Focus method: fixed (5mm from the bottom )
Optical power: CW 6W+
Wavelength: 450nm
Weight: 210g
Module Size: 30x30x130 mm
Input: DC 12V 3A
Interface: 4pin PH2.0
Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 2s Max, NEJE 2s Plus, etc.
(NEJE provides an interface adapter board, which is widely compatible with: other brand laser machines, 3D printers, Arduino, and CNC equipment. )
Power Control: PWM Power Modulation
Fan: Double Ball High Life Fan
Drive: NEJE Smart Quiet Drive, Built-in static elimination technology.
Surge Protection: Yes
Smart Feedback: Yes
Temperature Feedback: Yes
Temperature control: 45℃
Air Supply: 0.5-1.5mpa clean air
Air interface: 4mm pvc trachea
Replace lens design: Yes
Original registered brand: Yes

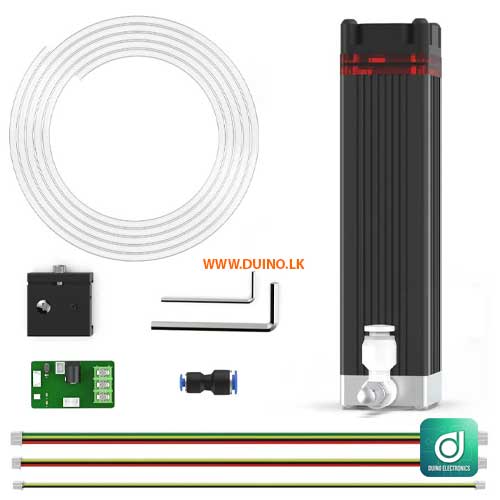

Package list:
1 x NEJE F30130 laser module (Built-in high-pressure air nozzle )
1 x Laser module height adjuster
1 x 4 pin cable(30cm)
1 x 2pin yellow and black signal line + 3pin input line
1 x NEJE test/switch/interface adapter board
1 x 2.5mm L-shaped wrench
1 x 5mm L-shaped wrench
1 x Tube (4mm x 2m)
1 x connector (M8 to M4)

warranty  – do not have a warranty since it is a consumable product
