Mist Maker USB Mini Humidifier DIY Kits 5V

Specifications:

Voltage: DV 5V

Current: 300mA

Power: 2W

Number of holes: 740

Aperture: 5um

Frequency: 108KHz, fixed frequency MCU

Driver board size: length 35× width 20× height 17mm (there will be slight error)

Strong versatility, large fog output, stable performance, the chip has an automatic timing shutdown function (continuous work for 4 hours will automatically shut down protection, if you need to start again to press the boot). 5V USB power supply mode, available MICRO charging cable power supply.

Atomizing sheet:

The net diameter of the atomized steel sheet is 16mm, the outer diameter of the silicone ring is 20mm, and the wire length is 8cm.

The microporous atomizing plate is coated with a special glaze protective layer on the surface of the ceramic plate, which can resist acid and alkali and prevent the silver layer from being oxidized by liquid.

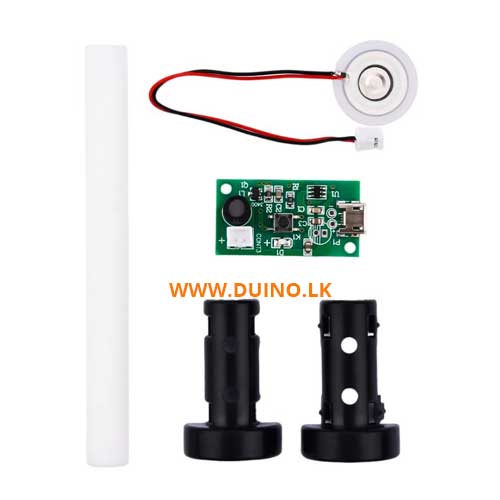

Package includes:

Circuit board X1

Atomizing plate X1

Absorbent cotton core X1
