KK 2.1.5 LCD Multi-rotor Flight Control Board Newest V1.19Pro

Features:

The 2.1.5 is functionally the same as the 2.1

Some minor changes have been made to the board including:

More Silk screening has been added to delineate polarity and functionality

Ground is now pulled from the Escs, which provides better reverse voltage protection.

Diode protection has been added to the buzzer to avoid damaging the board if you plug in power to the buzzer

Improvements have been added to the voltage sense accuracy

Specifications:

Size: approx. 36mm x 36mm x 15mm

IC: Atmega644 PA

Gyro/Acc: 6050MPU InvenSense Inc.

Auto-level: Yes

Input Voltage: 4.8-6.0V

AVR interface: standard 6 pin.

Signal from Receiver: 1520us (5 channels)

Signal to ESC: 1520us

LCD size: 24*18mm

Voltage sensor: One red positive pin header for.

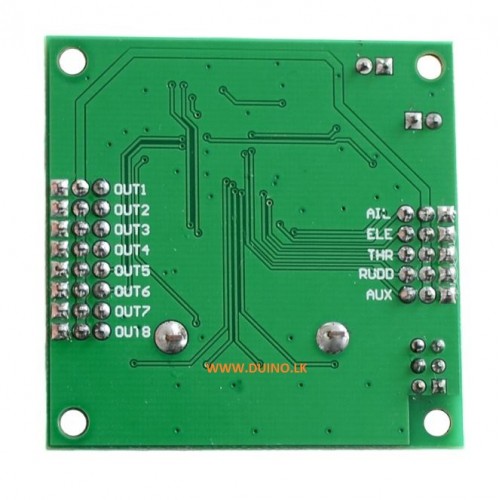

Input rail: Single row 2.54mm pitch pin header for input signal

Package Included:

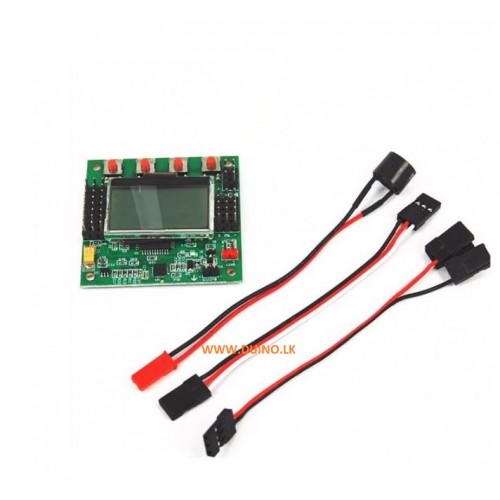

1 x Mini KK2.15 Flight Controller with protect case
