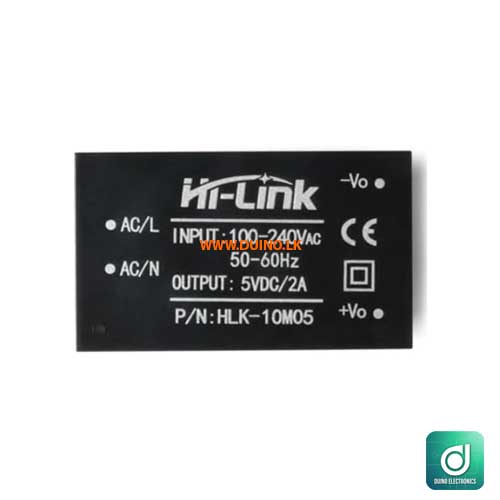

HI-Link HLK-10M05 AC-DC 220V to 5V 2A Step-Down Power Supply Module

Product Name HI-Link HLK-10M05 AC-DC 220V to 5V 2A Step-Down Power Supply Module Intelligent Household Switch Power Supply Module

Item NO. F36501

Weight 0.09 kg = 0.1984 lb = 3.1747 oz

Category Consumer Electronics > Industrial module

Brand HI-LINK

HI-Link HLK-10M05 AC-DC 220V to 5V  Step-Down Power Supply Module Intelligent Household Switch Power Supply Module

Product features :

1. Ultra-thin, small, industry’s smallest volume

2. Universal universal input voltage (90 ~ 265Vac)

3. Low power consumption, environmental protection, no-load loss <0.1W

4. Low ripple and low noise

5. Good output short circuit and over current protection and self-recovery

6. High efficiency and high power density

7. Input and output isolation withstand voltage 3000Vac

8. 100% full load aging and testing

9. High reliability and long life design, continuous working time is more than 100,000 hours

10. Meet UL and CE requirements; product design meets EMC and safety testing requirements

11. Adopt high-quality environmental protection waterproof and thermally conductive adhesive potting, moisture-proof, vibration-proof, meet the waterproof and dustproof IP65 standard

12. Economical solution, high cost performance

13. Works without external circuit

Environmental conditions:

Working environment temperature: -25° + 60 °

Storage temperature: -40° + 80 °

Relative humidity: 5-95%

Cooling method: Natural cooling

Atmospheric pressure: 80?106 Kpa

Altitude: ?2000 m

Vibration coefficient: 10 ~ 500Hz, 2G10min./1cycle, 60min.each along X, Y, Z axes (meet the requirements of secondary road transportation)

Note:

Output overcurrent protection: 110-150% of output maximum load

Output short-circuit protection: direct short-circuit during normal output, automatically resume normal operation after short-circuit removal, without damaging the whole machine
