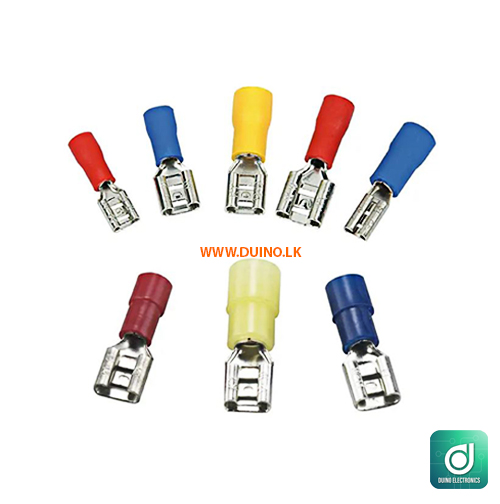

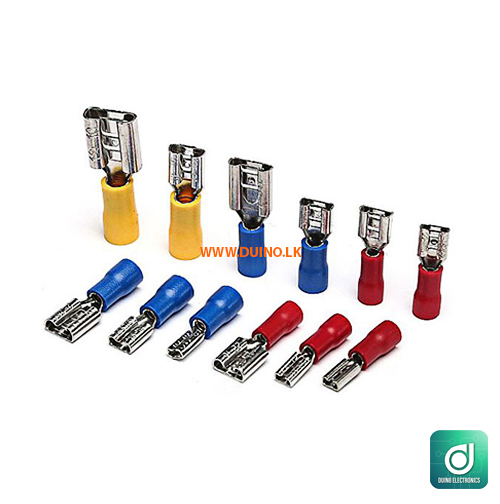

FDD Female Quick Disconnector Insulated Crimp Terminal *10Pcs

FDD Female Quick Disconnector Insulated Crimp Terminal

FDD Female Disconnect Crimp Connectors

FDD Female Disconnect Connectors are high-quality insulated crimp terminals designed for secure and reliable electrical wire connections. These quick-disconnect terminals are widely used in automotive wiring, industrial equipment, household appliances, power supplies, audio systems, and DIY electronics projects. The insulated sleeve provides additional safety and durability while ensuring strong electrical conductivity and easy installation.

Features
High-quality insulated female disconnect terminals
Strong and reliable crimp connection
Quick connect and disconnect design
Durable heat-resistant insulation sleeve
Excellent electrical conductivity
Easy wire installation using standard crimping tools
Suitable for automotive, industrial, and electronic applications
Compatible with standard male blade terminals
Available Sizes

Model Blade Width Wire Size Range
A – FDD1.25-110 2.8mm 0.5–1.5mm²
B – FDD1.25-187 4.8mm 0.5–1.5mm²
C – FDD1.25-250 6.3mm 0.5–1.5mm²
D – FDD2-110 2.8mm 1.5–2.5mm²
E – FDD2-187 4.8mm 1.5–2.5mm²
F – FDD2-250 6.3mm 1.5–2.5mm²
G – FDD5-250 6.3mm 4–6mm²
H – FDD5.5-375 9.5mm 4–6mm²

Applications
Automotive electrical wiring
Battery and power connections
Home appliances
Control panels
Speaker and audio wiring
DIY electronic projects
Industrial machinery
Power supply systems
Package Includes
Selected FDD Female Disconnect Connector(s) according to the chosen size and quantity.
