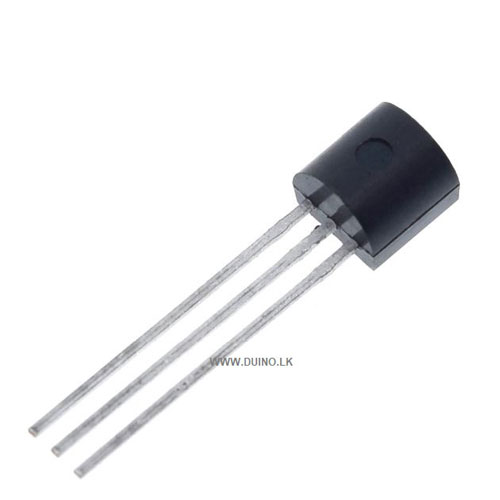

DS18B20 18B20 TO-92 IC CHIP Thermometer Temperature Sensor

SKU: SEN1574
Availability:

In stock


DS18B20 Sensor Specifications

Programmable Digital Temperature Sensor

Communicates using 1-Wire method

Operating voltage: 3V to 5V

Temperature Range: -55°C to +125°C

Accuracy: ±0.5°C

රු260.00

In stock

Compare

DS18B20 Sensor Specifications

Programmable Digital Temperature Sensor

Communicates using 1-Wire method

Operating voltage: 3V to 5V

Temperature Range: -55°C to +125°C

Accuracy: ±0.5°C

Output Resolution: 9-bit to 12-bit (programmable)

Unique 64-bit address enables multiplexing

Conversion time: 750ms at 12-bit

Programmable alarm options

Available as To-92, SOP and even as a waterproof sensor

Where to use DS18B20 Sensor

The DS18B20 is a 1-wire programmable Temperature sensor from maxim integrated. It is widely used to measure temperature in hard environments like in chemical solutions, mines or soil etc. The constriction of the sensor is rugged and also can be purchased with a waterproof option making the mounting process easy. It can measure a wide range of temperature from -55°C to +125° with a decent accuracy of ±5°C. Each sensor has a unique address and requires only one pin of the MCU to transfer data so it a very good choice for measuring temperature at multiple points without compromising much of your digital pins on the microcontroller.

How to use the DS18B20 Sensor

The sensor works with the method of 1-Wire communication. It requires only the data pin connected to the microcontroller with a pull up resistor and the other two pins are used for power as shown below.

The pull-up resistor is used to keep the line in high state when the bus is not in use. The temperature value measured by the sensor will be stored in a 2-byte register inside the sensor. This data can be read by the using the 1- wire method by sending in a sequence of data. There are two types of commands that are to be sent to read the values, one is a ROM command and the other is function command. The address value of each ROM memory along with the sequence is given in the datasheet below. You have to read through it to understand how to communicate with the sensor.

If you are planning to interface it with Arduino, then you need not worry about all these. You can develop the readily available library and use the in-built functions to access the data.

Applications

Measuring temperature at hard environments

Liquid temperature measurement

Applications where temperature has to be measured at multiple points
