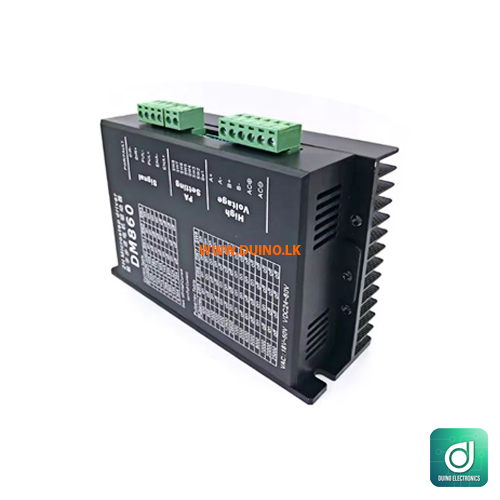

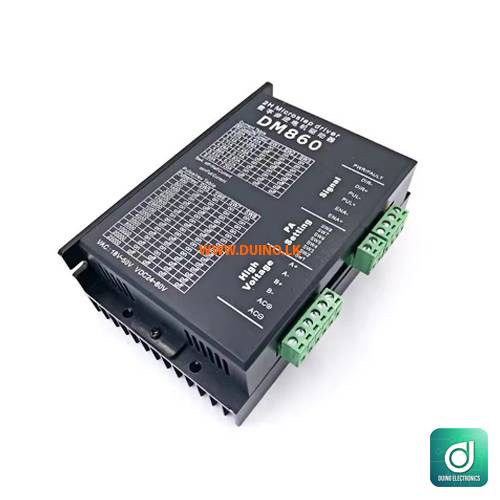

DM860 7.2A Stepper Motor Driver

SKU: MOD3020-G
Availability:

Available on backorder


Please purchase this product only if you have sufficient knowledge and experience to use it correctly. DM860 7.2A Stepper Motor Driver මෙම අයිතමය අපගේ මහනුවර showroom එකේ සහ මෙම online website එක තුල එකම තොගයක් ලෙස පවතින බැවින් පවතින තොග පිළිබඳව දැනගැනීමට මිලදී ගැනීමට පෙර Whatsapp (0712121767) පණිවිඩයක් යොමුකරන්න.

Price range: රු10,700.00 through රු11,890.00

DM860 7.2A Stepper Motor Driver

The DM860 7.2A Digital Stepper Motor Driver is designed to provide accurate, stable and smooth control of compatible two-phase stepper motors. With adjustable output current and multiple microstep settings, it can be configured to match different motor and motion-control requirements.

Its digital control technology helps achieve smoother motor operation while reducing vibration and motor heating. The driver also features optically isolated control inputs and built-in protection functions for reliable operation in various motion-control applications.

Key Features
Maximum Output Current: Up to 7.2A
Adjustable Current: Multiple selectable current levels
Microstep Resolution: 400 to 25,600 pulses/revolution
Input Voltage: Depending on model/version, approximately 24–80V DC
Control Signal: Pulse/Direction or compatible double-pulse input
Maximum Pulse Frequency: Up to 200kHz
Motor Compatibility: Suitable for 2-phase stepper motors
Optically Isolated Inputs: Improved protection against electrical interference
Automatic Idle Current Reduction: Helps minimize motor heating when stationary
Digital Current Control: Provides stable motor performance
Protection: Over-voltage and over-current protection
Suitable Applications

The DM860 is suitable for motion-control systems where precise and reliable stepper motor operation is required, including:

CNC machines and motion-control systems
Laser cutting and engraving equipment
X-Y positioning systems
Automated machinery
Pick-and-place mechanisms
Robotics and other stepper-based projects
Technical Specifications
Specification Details
Driver Type Digital Stepper Motor Driver
Maximum Current 7.2A
Input Voltage 24–80V DC*
Microstep Range 400–25,600 PPR
Pulse Frequency Up to 200kHz
Motor Type 2-Phase Stepper Motor
Signal Input Pulse / Direction
Input Isolation Optically Isolated
Protection Over-Voltage / Over-Current
Current Adjustment Switch Selectable
