Products Description
The CP2112 is highly integrated USB-to-SMBus bridge controller integrates a USB 2.0 full-speed function controller,USB
transceiver oscillator and eight GPIO pins. All customization and configuration options can be selected through a simple GUI-based
configurator. Standard HID class devices do not require the development of complex firmware and drivers. The CP2112 device enables
fast USB connectivity with minimal development effort.
Parameters
* USB bus power supply: 4.0 to 5.25V
* Self-powered: 3.0 to 3.6V
* I/O voltage: 1.8V to VDD
* Working environment temperature: -40 ° C ~ 85 ° C
* On-chip power-on reset circuit,on-chip voltage regulator: 3.45 V output
* Compliant with USB specification 2.0 standard; full speed (12Mbps)
* USB suspend status via SUSPEND and /SUSPEND pins
* Integrated 194-byte one-time programmable ROM for storing customizable product information
* 512-byte SMBus data buffer,configurable clock speed device address 7-bit value is the slave address of CP2112
* Windows,Mac,and Linux HID to SMBus libraries API for rapid application development,open access interface specifications.
* 8 GPIOs can be configured as input/output and open drain/push-pull,configurable clock output for external devices 48MHz to
94kHz,switching LEDs during read/write SMBus

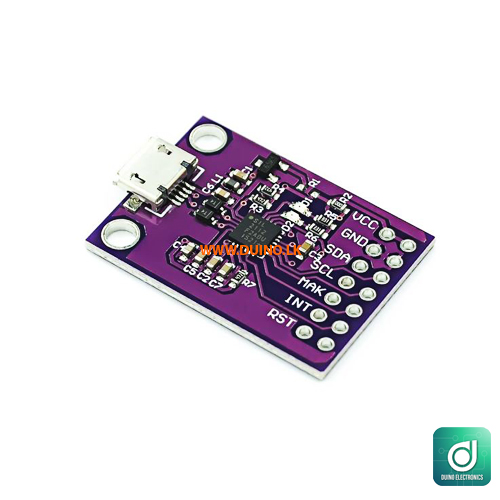

* Module size: 29.5mm*21.3mm,with two M3 mounting holes,one MicroUSB female port
Application
portable controllers,USB dongle,data logging
