AlgoLaser Rotary Roller (RR2) Y-Axis Rotary Attachment for Laser Engravers

AlgoLaser Rotary Roller (RR2) Y-Axis Rotary Attachment for Laser Engravers

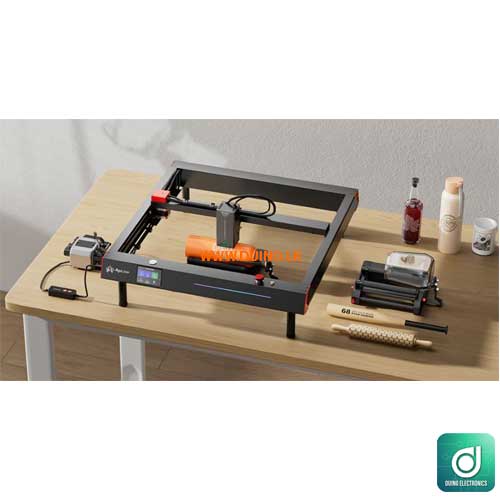

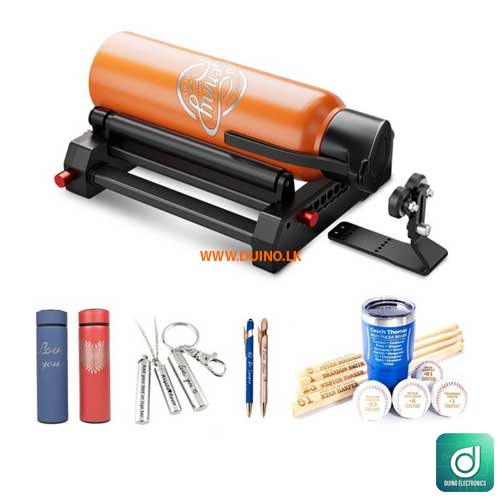

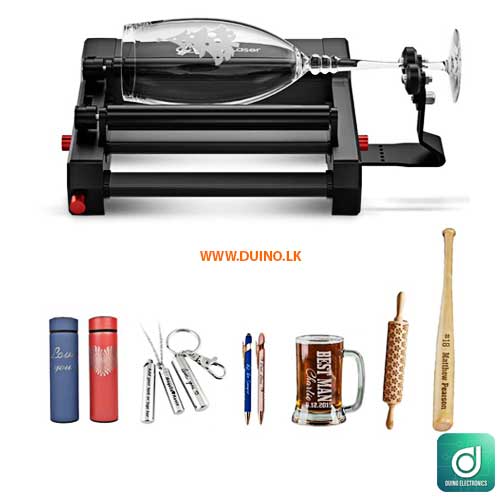

The AlgoLaser RR2 Rotary Roller is an advanced second-generation Y-axis accessory designed to extend the functionality of laser engraving machines. It enables precise 360° engraving on cylindrical and curved objects such as tumblers, bottles, cups, and pens, making it ideal for both hobbyists and professional users.

Product Highlights
Wide Adjustment Range

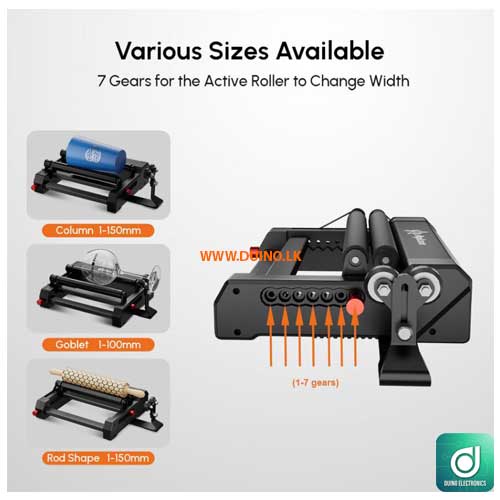

Equipped with a 7-level adjustable roller system, the RR2 can accommodate a variety of object sizes, supporting diameters from 1mm up to 150mm.

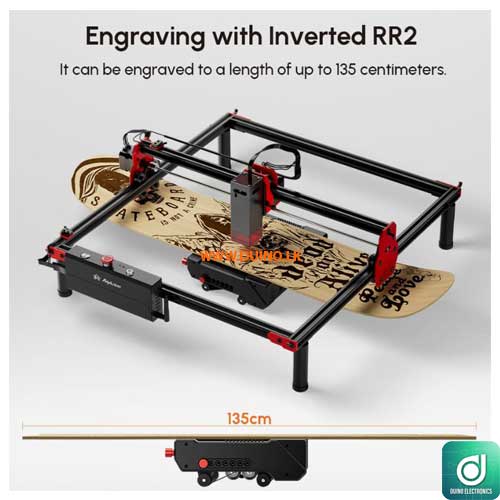

Extended Engraving Capability
The device supports inverted operation, allowing users to engrave longer items up to 135 cm in length, making it suitable for large or custom projects.

Precision & Stability
Silicone-coated rollers provide a firm grip while ensuring smooth rotation. The system offers high accuracy with fine control, delivering clean and detailed engraving results.

Universal Compatibility
Designed to work with most laser engraving machines in the market, including popular brands such as AlgoLaser, SCULPFUN, Ortur, NEJE, and Atomstack.

Quick Installation

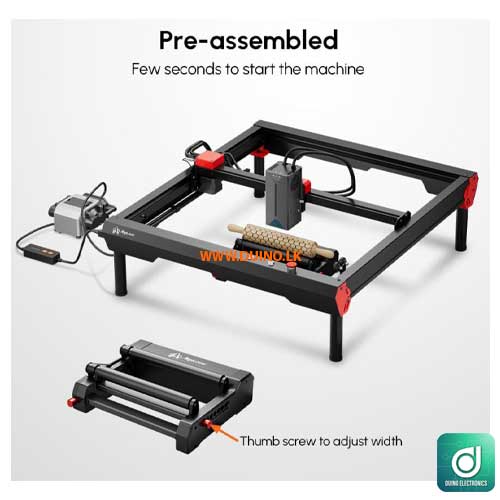

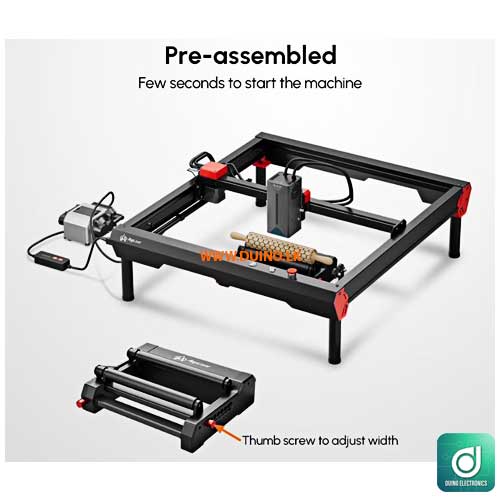

The unit comes pre-assembled for easy setup. Simply connect it to your machine’s Y-axis motor cable and start engraving with minimal configuration.

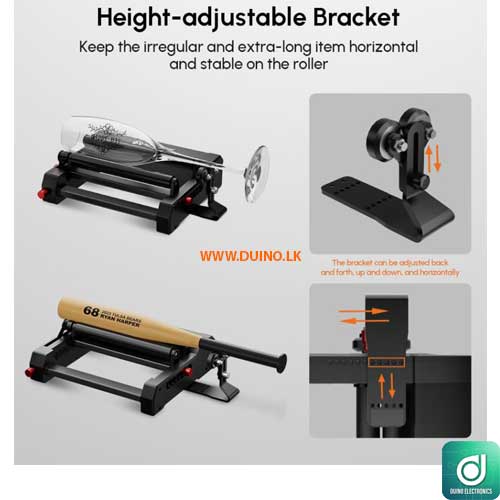

Support for Irregular Objects
Includes an adjustable support bracket to stabilize longer or uneven items during operation.

Compatibility & Setup
Software Support: Works seamlessly with LightBurn, LaserGRBL, and the AlgoLaser App
Machine Compatibility: Suitable for AlgoLaser Alpha, DIY Kit, Delta series, and most third-party engravers
Setup Note: Requires disconnecting the standard Y-axis motor and connecting the rotary roller. Basic parameter adjustments may be needed in your software for optimal performance
Technical Specifications

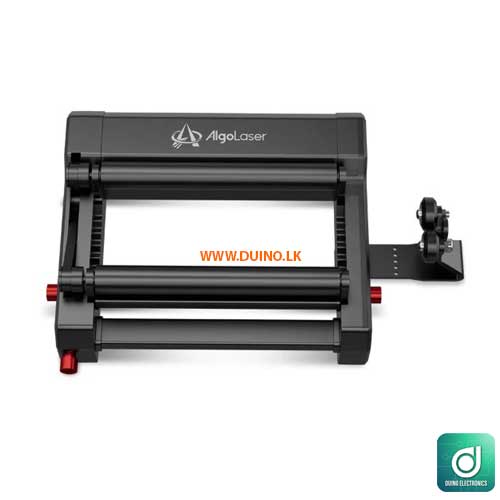

Model: RR2
Type: Y-axis rotary roller (360° engraving support)
Dimensions: 265 × 195 × 70 mm (with bracket)
Weight: 1.15 kg

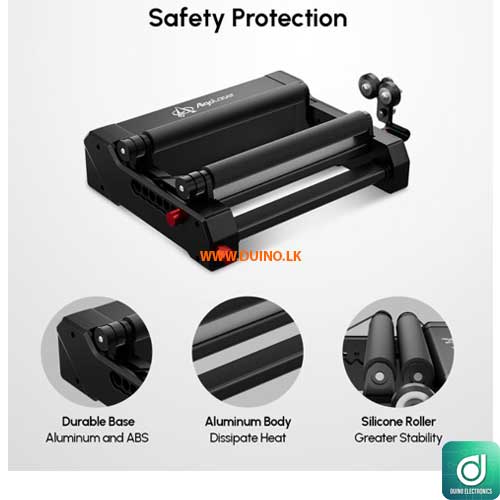

Build Material: Aluminum + ABS base with silicone rollers
Drive System: Single motor drive
Supported Cylinder Diameter: 1 – 150 mm
Supported Goblet Diameter: 1 – 100 mm
Maximum Length (Inverted Mode): Up to 135 cm

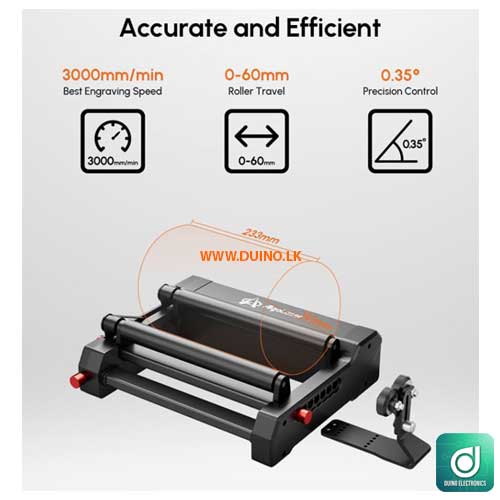

Recommended Engraving Speed: Up to 3000 mm/min
Compatible Software: LightBurn, LaserGRBL, AlgoLaser App
Package Includes
1 × RR2 Rotary Roller
1 × Adjustable Side Bracket
1 × 2.0mm L-Type Hex Key
Required connection cables (for Alpha / DIY / Delta models, etc.)
