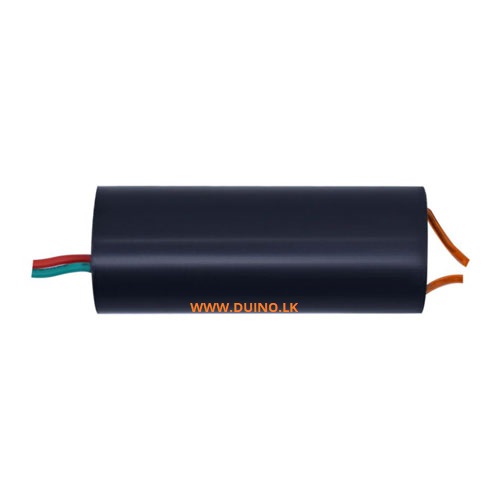

400kV DC 3v-6v 400000V Boost Step-up High voltage Generator Super Arc

New DC 3V-6V Bis 400kV 400000V Boost Step Up Power Module High Voltage Generator

Description:

input voltage: DC 3 V to 6 V

Input current: 2 A – 5 A

High-pressure type: the type of pulse current

Output voltage: 400000 v(Please pay attention to safety)

High-pressure discharge distance between 10 mm – 20 mm

The output high voltage wire length: is 100 mm

Input power cord length: 100 mm (the red line is positive)

Wiring:

Red and green power connection red line:”+” green line “-”

output: the other side, same color cable

please notice:

the high-voltage module should avoid the use of electricity in high-voltage no-load. (Power must be adjusted to a suitable distance to the high-voltage output line, battery capacity is proportional to the distance and the use of the high-pressure arc ( not a voltage as high as possible, you must provide enough current ) . Experimental test of the arc distance from short to long, Do not exceed the maximum arc distance electricity, energy can not be released due to high pressure, can easily damage the module. )

Work: intermittent, continuous work does not allow more than 1 minute and the output side does not allow shorting. Improper voltage and long working hours easily damaged the module

Package included:

1 x DC 3v-6v to 400kV 400000V Boost Step-up Power Module High-voltage Generator
