1200W DC to DC 20A Step-Up Boost Converter 8~60V to 12~80V Adjustable

1200W DC to DC 20A Step-Up Boost Converter 8~60V to 12~80V Adjustable

Module parameters:

Module name: 1200W booster constant-current module

Module Nature: Non-isolated BOOST Module (BOOST)

Input voltage :DC10-60V (Direct input 10-60V without jumper cap selection voltage) (Updated 2016/5/15)

Input current: 20A (MAX) If more than 15A, please add fan heat dissipation (if the input voltage of fan heat dissipation is 12-24V, input current can reach 25A)

Static working current: 15mA(when 12V rises to 20V, the static current will increase with the higher the output voltage)

Output voltage: 12-83V continuous adjustable (The default output is adjusted to 19V for shipment, if you need to adjust to other voltage values please explain. If there is a multimeter buyers can adjust themselves)

12-83V Fixed output (for batch customers)

Output current: 18A MAX exceeds 10A, please strengthen heat dissipation (related to input and output pressure difference, the larger the pressure difference, the smaller the output current)

Constant current range: 0.5-18A (+/-0.3A)

Input anti-reverse connection: have (150A power MOS anti-reverse)

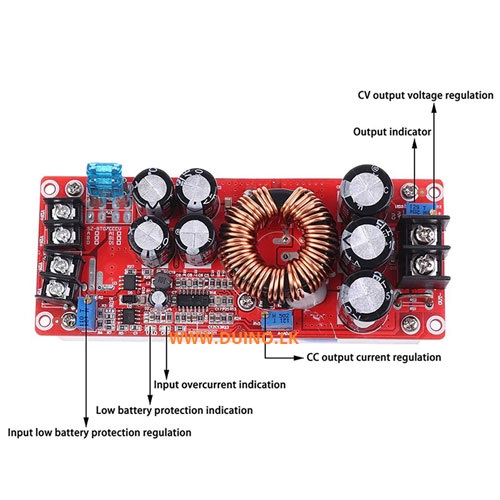

Low battery protection: there is (9-50V adjustable)

Operating temperature: -40~+85 degrees (strengthen heat dissipation when the ambient temperature is too high)

Operating frequency: 150KHz

Conversion efficiency: 92-97% (efficiency is related to input, output voltage, current and pressure difference. Low pressure difference and high efficiency)

Input overcurrent protection: yes (input over 25A, automatic protection, power supply does not boost)

Short circuit protection: there is (input 30A fuse) double short circuit protection, more secure use.

Input reverse protection: there is (150A power MOS tube anti-reverse. Can be reversed for a long time)

Installation: 4 3mm copper columns

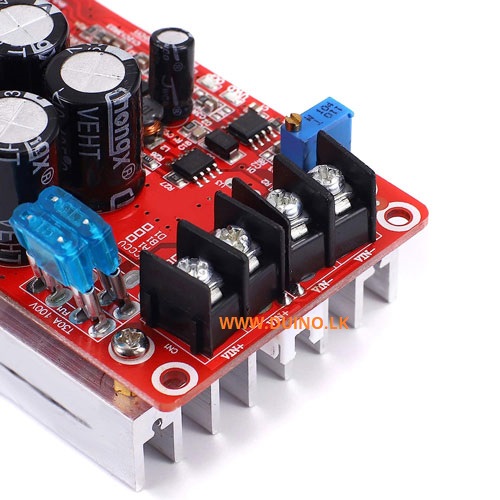

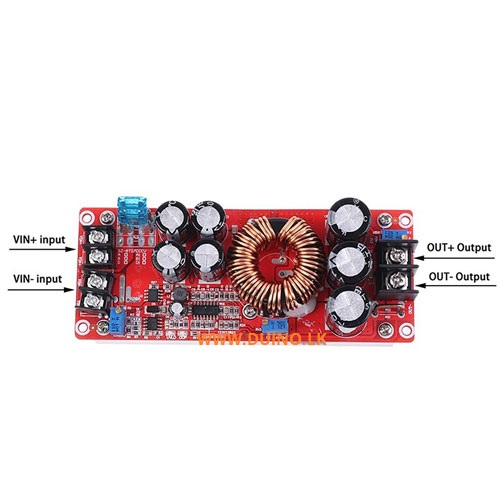

Wiring mode: Wiring terminal (please use high current pure copper wire)

Module size: 130mm long, 52mm wide and 53mm high

Module weight: 300g

Output power: = Input voltage x 20A, for example, input 12V x 20A=240W When input 12V, the maximum power is 240W

Input voltage *20A For example, input 24V*20A=480W, that is, the maximum power is 480W when input 24V

Note: The maximum power is 240W when 12V is input, 480W when 24V is input, and 720W when 36V is input
