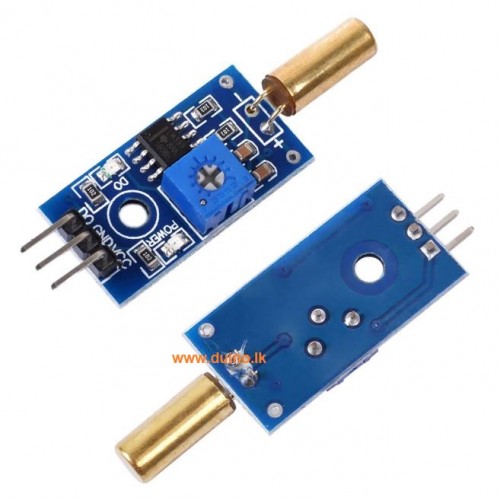

Angle Sensor SW520D Ball Switch Tilt Sensor Module

1.Sensor can sense changes in body angle

2.Adjustable sensitivity (shown in blue digital potentiometer adjustment)

4.Operating Voltage 3.3V-5V

5.Output format: digital switching outputs (0 and 1)

6.With fixed bolt hole for easy installation

7.Small PCB board size: 3.2cm * 1.4cm

8 .Power indicator (red) and the digital switch output indicator (green)

9 .Using LM393 comparator chip, stable

10.Life: at room temperature and normal life of up to 100,000 times switch (times / 1sec).

Small plate interface specification (3-wire)

1 VCC external 3.3V-5V

2 GND GND External

3 DO small board digital output interfaces (0 and 1)

Instructions for use:

1.tilt switch sensor using SW-520D, high sensitivity

2.small board digital output interface can be directly

connected to the microcontroller IO port

Wiring:

Module development board connected to VCC VCC

GND GND connection module development board

D0 module development board connected to P0.1

Package includes:

1 x Angle Sensor Ball Switch Tilt Module
